RedTide: Automated Attack Simulations for Endpoint Security Validation

Run controlled attack simulations in a Windows lab and see how Microsoft Defender for Endpoint responds.

By Carlos Suarez · September 2026 · 6 min read

Carlos Suarez Sr. Security Solution Engineer · Microsoft

Disclaimer: RedTide is a personal project, not an official Microsoft product. Use it only on test machines you're authorized to modify.

I kept running into the same problem when testing endpoint protection. Microsoft provides demonstration scenarios for the different capabilities, but running them means working through the preparation for each one. Configure the protection, get the test files in place, run the test, look for the result, and put the settings back. None of those steps is particularly complicated. There are just enough of them that doing a full run becomes a task of its own.

That is what I wrote RedTide to help with. I wanted to spend less time preparing the machine and more time looking at what Defender actually did with the test. The tool handles the setup and execution, gives you the information you need to find the detection, and provides cleanup afterward. You still have to open Defender and review the result. I think that distinction matters, because a script finishing successfully can tell you much less than it appears to.

The scenarios use test artifacts rather than live malware: EICAR strings, the AMSI test pattern, Microsoft's SmartScreen and Defender demo URLs, and commands designed to trigger behavioral detections. They do change security settings and write files, so use a dedicated test machine.

What a run looks like

You can run RedTide locally from an elevated PowerShell session or target a Windows VM in Azure through Run Command. The Azure mode needs the Az modules, a signed-in session, and permission to run commands on the VM. Scripted steps run remotely, but browser and Word demonstrations still need an interactive desktop on the target.

The workflow, from target checks to cleanup. Detection review happens in Defender.

Built for Microsoft Defender for Endpoint

Some test artifacts work with other security products, but RedTide's checks and configuration handling depend on MDE. It isn't a vendor-neutral test runner.

The screenshots below follow a local run. At the welcome screen, choose the target and run the pre-flight checks.

RedTide welcome screen. An ASCII banner reads RedTide, Attack Simulations for Endpoint Protection. A summary notes thirteen attack simulations that trigger real Defender alerts with no actual malware, grouped as Next-Gen Protection seven, ASR five, EDR one. Two run options follow: run on this machine WIN11 with local Defender, or run on an Azure VM in the cloud via Run Command. — The welcome screen offers local and Azure VM modes.

Pre-flight checks Windows, the PowerShell version and architecture, administrator rights, Defender Antivirus, real-time protection, and sensor onboarding. Here the shell wasn't elevated, so the check failed. That needs fixing before continuing.

Local pre-flight checks. Operating system Windows, PowerShell version 5.1, and architecture 64-bit all pass. Administrator privileges shows Not elevated and is flagged. Defender Antivirus is Active with real-time protection on, and the Defender for Endpoint sensor is onboarded. A missing-requirements note explains that running as Administrator is required, then the run aborts with exit code 1. — The failed administrator check identifies the missing requirement.

Once the checks pass, the connection card shows the host and its protection status. Confirm you're targeting the right machine before selecting a scenario.

Local mode connection card showing Windows 11 Enterprise, administrator elevation, active Defender Antivirus, real-time protection on, and an onboarded MDE sensor. The signed-in account is redacted. A warning explains that simulations modify Defender settings and create test files. — The target card includes a warning about configuration changes and test files.

Use the arrow keys to browse the menu, number keys to jump to an option, and Esc to go back. You can select one scenario or run the full set in sequence.

The simulation menu as a tree. Next-Generation Protection lists Cloud-Delivered Protection, AMSI Script Detection, Antivirus Validation EICAR, Behavior Monitoring, PUA Detection, SmartScreen App Reputation, and SmartScreen URL Reputation. Attack Surface Reduction lists Controlled Folder Access, ASR Rules, CFA Test Tool, Exploit Protection, and Network Protection. Endpoint Detection and Response lists EDR Detection Test. Footer options: deploy all simulations, back, clean up, exit. — Scenarios are grouped by protection area, with cleanup available from the same menu.

Before the first simulation, RedTide saves the Defender settings it tracks to baseline-state.json. Cleanup uses those saved values rather than applying a generic default configuration.

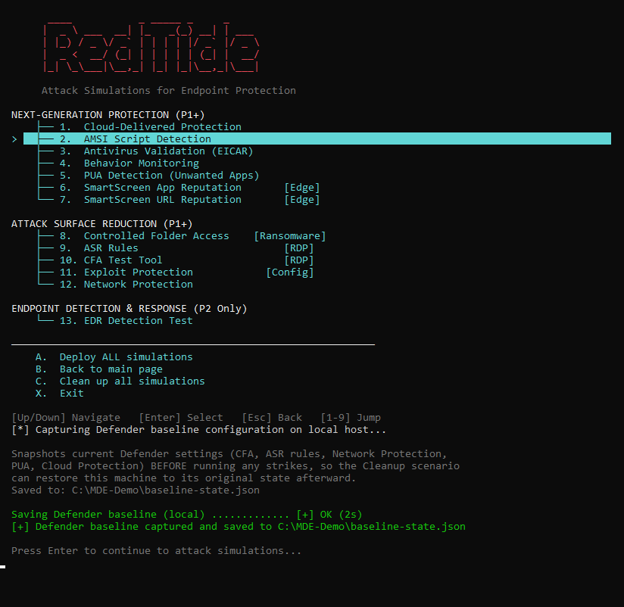

Baseline capture step. RedTide reports capturing the Defender baseline configuration on the local host, snapshotting CFA, ASR rules, network protection, PUA, and cloud protection settings before any strike runs, and saving the baseline to C colon backslash MDE-Demo backslash baseline-state.json. — The saved baseline includes CFA, ASR, network protection, PUA, and cloud protection settings.

Each scenario explains what it will change and the result to expect. Some also need a manual step, such as opening a test URL in Edge for SmartScreen. This AMSI example runs test scripts and reports that antivirus blocked execution.

AMSI Script Detection scenario. A briefing card explains the test runs AMSI test strings across PowerShell, VBScript, and JScript, writes AMSI_test.ps1, .vbs, and .js to C colon backslash MDE-Demo, and expects an MpTest malware prevented alert within one to five minutes. Below, deployment runs through six steps, each marked done, ending with detection confirmed: the script was blocked by antivirus. — The AMSI briefing and execution steps, with a local block reported.

The results card gives you the expected alert name, process chain, and portal location, plus an Advanced Hunting query where available. Treat this as a guide for the review, not confirmation that the portal received the alert.

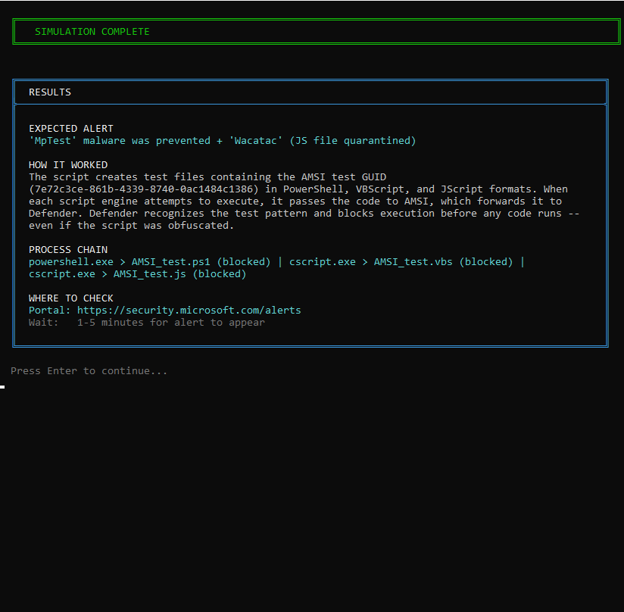

Results card for the AMSI scenario. Expected alert: MpTest malware was prevented, plus Wacatac for the quarantined JS file. It explains the test files carry the AMSI test GUID in PowerShell, VBScript, and JScript and are blocked before any code runs. The process chain shows powershell.exe and two cscript.exe processes, each blocking its AMSI test file. Where to check: the Defender portal alerts page, one to five minutes for the alert to appear. — The AMSI results card gives an expected alert delay of one to five minutes.

In Defender, look for the alert on the target device and inspect its process tree. In this run, MpTest malware was prevented shows the AMSI test activity. That confirms this particular detection reached the portal; it doesn't establish coverage for attacks beyond the scenario.

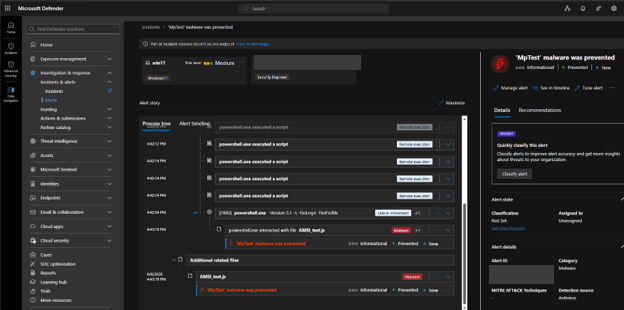

Microsoft Defender portal showing the MpTest malware was prevented alert on device WIN11. The alert story lays out a process tree: powershell.exe executed a script several times, PowerShell interacted with AMSI_test.js, and MpTest malware was prevented. The right panel shows alert state, classification, and detection source antivirus, mapped to MITRE ATT&CK. — The MpTest alert in Defender, with the test process tree and MITRE mapping.

After reviewing the results, select cleanup to restore the settings it tracks and remove the simulation files. It is not a complete rollback: some Defender and Office changes remain. Keep a VM checkpoint from before the run and revert to it when you're finished, rather than relying on the cleanup message alone.

Cleanup step running. RedTide reports restoring the system to baseline configuration and removing simulation artifacts, marks the step done, confirms the system was restored to baseline configuration, and reports that all simulation files were removed. — This cleanup run reports that the settings were restored and the test files removed.

The simulations

The scenarios come from Microsoft's Defender for Endpoint demonstrations. RedTide packages those procedures into the menu shown above. The table lists the current set and what each is intended to exercise.

#	Simulation	Area	What it tests
1	Cloud-Delivered Protection	Next-Gen	Cloud lookup blocks a known threat within seconds
2	AMSI Detection	Next-Gen	AMSI intercepts a malicious script pattern in memory
3	Antivirus (EICAR)	Next-Gen	AV engine detects the standard EICAR test string
4	Behavior Monitoring	Next-Gen	Behavioral engine flags suspicious process activity
5	PUA Detection	Next-Gen	PUA protection blocks a potentially unwanted application
6	SmartScreen (App)	Next-Gen	SmartScreen blocks download of an untrusted application
7	SmartScreen (URL)	Next-Gen	SmartScreen blocks navigation to a known malicious URL
8	Controlled Folder Access	ASR	CFA blocks an unauthorized write to a protected folder
9	ASR Rules	ASR	ASR rule blocks an Office macro from spawning a child process
10	CFA Test Tool	ASR	Microsoft CFA test tool validates folder protection
11	Exploit Protection	ASR	Exploit mitigations (DEP, ASLR, CFG, SEHOP) are active
12	Network Protection	ASR	Network protection blocks a connection to a malicious domain
13	EDR Detection	EDR	A suspicious process chain triggers a behavioral alert with a full process tree

Driving it from the command line

Built with

RuntimePowerShell 5.1+

AzureAz.Accounts · Az.Compute · Az.Resources

TransportInvoke-AzVMRunCommand

TestsPester 5.0+

You can also select a scenario directly. For an Azure VM, pass the resource group and VM name:

PowerShell · Azure VM path

.\Start-RedTide.ps1 `
  -Scenario CloudProtection `
  -ResourceGroup "security-lab-rg" `
  -VMName "test-win11"

For the local machine, use -Local instead of the Azure parameters:

PowerShell · Local path

.\Start-RedTide.ps1 -Local -Scenario CloudProtection

-WhatIf previews scenario commands, but startup, pre-flight, baseline capture, and the ASR sample download can still run. It is not a side-effect-free dry run. -SkipChecks skips the full pre-flight page, not every connection check. Direct invocation still prompts for input and doesn't remove manual scenario steps or the need to review detections. Run -Scenario Cleanup against the same target afterward.

What interests me in a run like this is being able to explain the result. If the expected alert does not appear, I want to understand whether the test ran correctly, whether the protection was configured as expected, or whether I am looking in the wrong place. Those are different problems, and working through them is a useful part of the exercise. That is where I would rather spend the time that used to go into preparing the same tests by hand.

Get the source code

RedTide is available on GitHub under the MIT license, with the simulation scripts and setup instructions. For questions about the tool, you can also reach me on LinkedIn.
